Effects Loop vs Front of Amp: Where Do Your Pedals Belong?

So, you’ve spent hours crafting the perfect guitar tone with your favorite pedals, only to find your awesome delay sounds turning to mud when you crank up your amp’s gain.

Or your lush reverb is so harsh it sounds like you’re playing in a tin can rather than a concert hall.

If any of these scenarios sound familiar, you might be facing one of the most common, yet often overlooked, issues in guitar tone: pedal placement.

The debate between effects loop vs front of amp placement isn’t just gearheads and guitar nerds battling back and forth on the internet. It’s an important consideration that can make or break your sound, especially as your pedalboard grows.

In this guide, we’ll look into where your pedals should go and why it really matters.

So, before we get started, just remember: there’s no single “correct” way to set up your signal chain. These are general guidelines that work for a lot of players, but, as always, your ears should be the final judge.

Understanding Your Amp’s Signal Path

To understand why pedal placement matters, we first need to break down how your amp processes your guitar signal.

Most guitar amps have two main sections: the preamp and the power amp. The effects loop sits between these two sections.

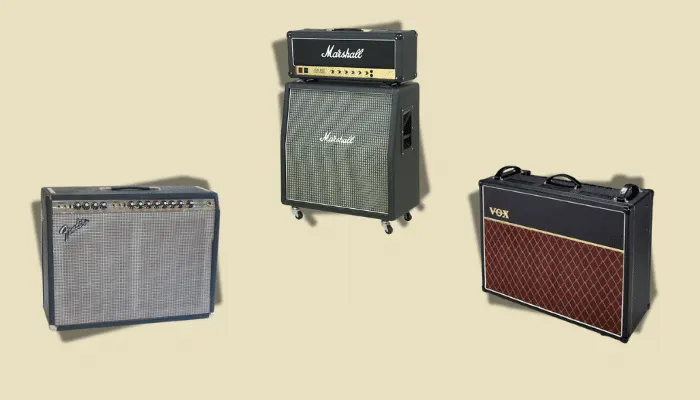

What is a Guitar Amp’s Preamp?

The preamp is the first section of your amplifier that receives your guitar signal. Its main roles include:

• Amplifying your weak guitar signal to a level the power amp can work with
• Shaping your tone through EQ controls (bass, mid, treble)
• Adding gain and distortion when you crank up the gain/drive knobs

Think of the preamp as your tone’s personality maker. This is where your amp develops its voice, or I like to think of it as an accent. Whether it’s the sparkle of a Fender Twin, the midrange punch of a Vox AC30, or the aggressive snarl of a Marshall JCM800 [1].

When you plug your pedals directly into your amp’s input, they hit this preamp section first. This means the preamp will process everything your pedals do to the signal. If your preamp is adding distortion, it will distort not only your guitar signal but also any effects you’ve added before it.

What is a Power Amp?

The power amp takes the signal from your preamp and amplifies it to a level powerful enough to drive your speakers. Its key characteristics include:

• Significant volume amplification that powers your speakers
• Additional tonal coloration, especially when pushed hard
• Power tube saturation that creates that coveted “cranked amp” sound

While the preamp gives your tone its character, the power amp gives it strength and, when pushed, it can add a different type of saturation that many players describe as “rounder” or more “three-dimensional” than preamp distortion.

Where you place your effects in relation to the power amp affects how they respond to and interact with your overall sound, especially when the power section is working hard.

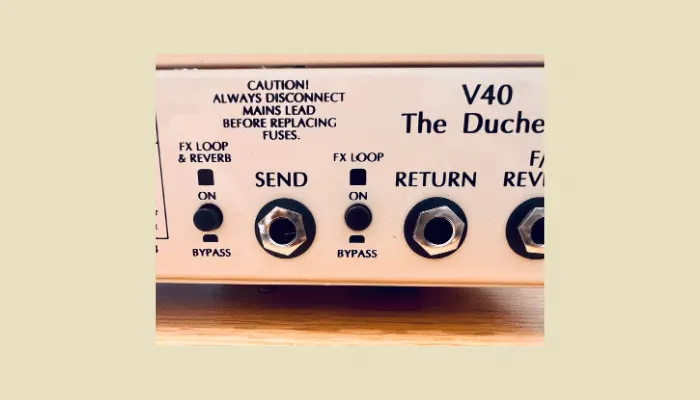

What is an Effects Loop?

The effects loop is simply a pathway that allows you to add effects between your amp’s preamp and power amp sections. It normally consists of two jacks on the back of your amp:

• A Send jack that outputs the signal after it’s been processed by the preamp
• A Return jack that feeds the signal back into the power amp

When you connect pedals to the effects loop, they process your signal after it’s been shaped and (potentially) distorted by the preamp, but before it hits the power amp section.

There are two main types of effects loops:

1. Series Effects Loops: The entire signal is routed through the effects. This is the most common type in guitar amps.
2. Parallel Effects Loops: The signal is split, with one path going through your effects and another remaining unprocessed. The two signals are then mixed back together. This preserves your original tone while adding effects.

🔗 Curious about how an effects loop actually works? Check out our article: What is an Effects Loop on an Amp and How Does it Work.

The Front of Amp Approach

For decades, guitarists have plugged their pedals directly into their amp’s front input. There’s a good reason this approach is still popular.

Advantages of Front-of-Amp Placement

It’s Simple

Just chain your pedals together and plug them into your amp. No extra cables or connections needed. This straightforward setup is perfect for gigging musicians who want to minimize potential points of failure.

Classic Signal Chain Approach

This is the traditional method used on countless iconic recordings. From Hendrix’s fuzz to The Edge’s delays, many legendary tones were created with everything going into the front of the amp.

Better Interaction with Preamp Gain

Front-of-amp placement allows pedals like boosts and overdrives to interact directly with the amp’s preamp. This lets you push the preamp tubes harder, resulting in a more dynamic, harmonically rich gain sound.

Preferred for Blues and Rock Tones

Many blues and rock players love the response of a Tube Screamer or similar pedal into a cranked tube amp. It’s a tried-and-true formula for expressive, touch-sensitive overdrive.

Ideal Pedals for Front of Amp

Some pedals simply work better when placed before your preamp:

• Dynamics and Boost Pedals
  Like compressors and clean boosts interact directly with your preamp, helping you control your signal before any amp distortion occurs. A compressor before your amp will even out your playing dynamics before the preamp adds any character, while a boost can push your preamp into natural overdrive.
• Gain Pedals
  Overdrive, distortion, and fuzz typically sound best when hitting your preamp directly. For example, a Tube Screamer into a Marshall’s front end creates that classic mid-boosted rock sound, while a Big Muff fuzz loses some of its characteristic grittiness when placed in an effects loop.
• Wah and Filter Effects
  These rely on directly manipulating your guitar signal before it hits any distortion. A wah pedal placed after distortion sounds significantly less expressive and can even sound unpleasantly harsh.
• Some Modulation Effects
  Phasers and tremolos, often benefit from front-of-amp placement. A phaser like the MXR Phase 90 placed before a lightly driven amp creates that classic Van Halen “swoosh” that feels intimately connected to the guitar signal.

Potential Drawbacks

While front-of-amp placement works great in many scenarios, it does have some limitations:

Muddy Time-Based Effects with High Gain

Time-based effects can become muddy when your amp is set for high gain. When you place a delay pedal before a heavily distorted preamp, each repeat gets distorted along with your dry signal, making it harder to hear individual repeats and creating a washy, possibly indistinct sound.

This is why many players don’t like the sound of delay and reverb pedals through high-gain amps.

Altered Modulation Characteristics

Modulation effects like chorus or flanger can lose some of their pristine character and definition when run into a distorting preamp. The added gain compresses and colors the modulation, which might not be the tone you’re after.

Signal Degradation in Long Chains

Signal degradation can also become an issue with longer pedal chains. Each pedal (especially true bypass ones) and every extra cable adds potential tone loss—usually in the high frequencies. This is where buffer pedals, placed strategically, become important to maintain clarity and punch.

The Effects Loop Approach

Using your amp’s effects loop offers an alternative approach with some clear tonal advantages, especially when you’re using your amp’s distortion.

Advantages of Effects Loop Placement

• Clearer Time-Based Effects with Distorted Amps
  The most significant benefit is cleaner, more articulate delay repeats and reverb tails when using a distorted preamp. Since the signal is processed after distortion, your effects won’t get muddy or overwhelmed.
• Studio-Like Separation of Effects
  In professional recordings, effects like reverb and delay are often added after the distorted signal. Using an effects loop replicates this signal chain in a live rig, giving you more separation and clarity between your dry tone and your ambient effects.
• More Defined, Pristine Effect Sound
  Many guitarists notice that certain pedals—especially digital ones—sound more transparent and high-fidelity in the effects loop. The loop helps preserve detail, especially in higher frequencies, which can be lost when going through a distorted preamp.

Ideal Pedals for Effects Loop

The following effects almost always benefit from effects loop placement:

• Delay Pedals
  Delay pedals keep clear, distinct repeats in the effects loop, avoiding the “delay soup” that can happen when placed before a high-gain preamp. This is especially important for rhythmic delay effects that need to remain articulate, like dotted eighth patterns or precise multi-tap delays.
• Reverb Pedals
  Reverb pedals typically sound most natural in the effects loop. Think about it this way: reverb simulates your sound in a space. In real life, your amp’s distortion doesn’t distort the reverberations in the room. The sound distorts first. Then we hear the reverb. Adding your reverb to the effects loop recreates this natural order.
• Chorus and Flanger Effects
  Chorus and flanger effects often sound good in the effects loop when you’re using high-gain preamp settings. The multi-voice shimmer of a chorus remains more defined and three-dimensional when it’s not being compressed and distorted by the preamp.
• Volume Pedals
  Volume pedals in the effects loop function more like a master volume control, affecting your overall level without changing how hard you’re hitting the preamp. This is perfect for volume swells that keep the same amount of distortion throughout the swell.

Potential Drawbacks

Effects loop placement isn’t without its challenges:

More Cabling and Complexity

Additional cabling means more potential points of failure and a more complex setup.

You’ll need at least two more cables to use the effects loop, plus potentially longer cable runs to reach the back of your amp.

Impedance and Level Mismatches

Impedance and level mismatches can occur if your pedals aren’t designed to handle line-level signals.

This is particularly true with vintage-style pedals or those specifically designed for instrument-level signals. The result can be unwanted distortion or a thin, weak sound.

Some Pedals Just Don’t Work Well in the Loop

Not all pedals work well with line-level signals.

Some overdrive and distortion pedals, for instance, are specifically designed to interact with the lower instrument-level signals coming directly from your guitar.

Placing these in an effects loop often yields disappointing results.

Real-World Signal Chain Examples

Let’s look at some common scenarios to help you decide on the best approach for your particular setup.

Clean Amp Setup

If you mostly use a clean amp and get your distortion from pedals, a front-of-amp approach often works perfectly fine. This is the approach I use with my pedalboard.

Here’s what a typical signal chain might look like:

Guitar → Tuner → Wah → Compressor → Overdrive/Distortion → Modulation → Delay → Reverb → Amp Input

In this scenario, even time-based effects typically sound good going into the front of the amp because there’s not much preamp distortion to muddy them up. I just set my amp a little hot (edge-of-breakup), but nothing too gainy.

This approach works especially well for jazz players using pristine, clean amps. For funk or country players who might use occasional light breakup, the front-of-amp approach still maintains good definition because the distortion level is very low.

High-Gain Amp Setup

Players who rely on their amp’s preamp distortion often can benefit from a hybrid approach:

Guitar → Tuner → Wah → Boost/Overdrive → Amp Input

Amp Effects Send → Noise Gate → Modulation → Delay → Reverb → Amp Effects Return

Metal and hard rock guitarists particularly benefit from this separation. The front-end gain pedals push the already-distorted preamp for even more saturation, while the time-based effects remain clear and defined in the loop.

This approach gives you tight, articulate palm-muted chugs with clear delay repeats. This is essential for many modern metal styles.

Many high-gain players also place a noise gate in the effects loop to clamp down on hiss and feedback after the preamp distortion, rather than before it, which can affect pick attack and dynamics.

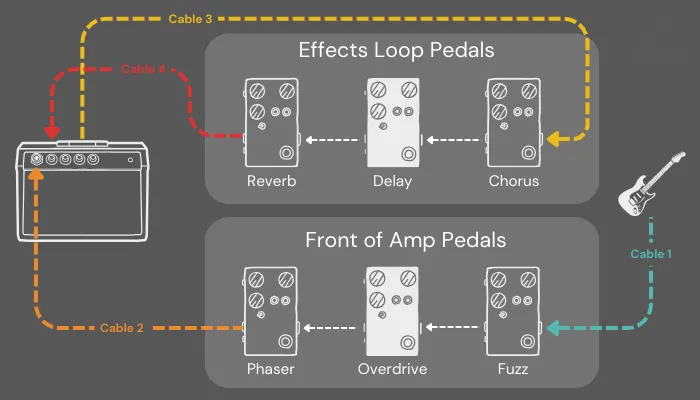

“Best of Both Worlds” Hybrid Approach

For maximum flexibility, many guitarists like to use both the front of the amp and the effects loop. It looks like this:

Guitar → Tuner → Wah → Compressor → Overdrive → Phaser → Amp Input

Amp Effects Send → Chorus → Delay → Reverb → Amp Effects Return

This approach lets you:

• Push your preamp with drive pedals for more dynamic distortion.
• Keep your wah and phaser interacting directly with your guitar signal.
• Maintain pristine, clear chorus, delay, and reverb sounds.

When deciding what goes where in a complex rig, always think about how each effect interacts with distortion.

Effects that shape your core tone or drive your amp typically go up front, while effects that should remain clear and unaffected by distortion go in the loop.

The Effects Loop for Specific Pedal Types

Some effects deserve special attention because their placement can dramatically alter their function.

Modulation Effects

Modulation effects (chorus, flanger, phaser, tremolo, etc.) are perhaps the most placement-flexible effects, with each position offering distinct tonal characteristics:

Front of amp placement often yields:

• More subtle, vintage-sounding modulation that feels embedded in the core tone
• Interesting harmonic interactions when hitting a distorted preamp
• “Chewy” phaser sounds like Eddie Van Halen or “swooshy” flanger tones like Andy Summers

Effects loop placement typically provides:

• Clearer, more pronounced modulation effects
• More modern, defined chorus similar to 80s rack units
• Pristine, hi-fi modulation characteristics

Famous tone examples include the subdued phaser on “Ain’t Talkin’ ‘Bout Love” (front of amp) versus the crystalline chorus on “Every Breath You Take” (likely post-preamp processing).

Volume Pedals

A volume pedal’s function changes dramatically depending on its placement:

Front of amp placement affects how hard your signal hits the preamp. This means:

• Volume swells will start clean and gradually introduce more distortion as you increase volume
• Lowering the volume will clean up your amp’s distortion
• You can use it like your guitar’s volume knob but with more precise foot control

Effects loop placement functions more like a master volume for your entire rig:

• Volume swells maintain consistent distortion character throughout
• Perfect for theatrical volume effects with high-gain sounds
• Ideal for fading songs in and out without changing your tone

Try both positions to see which behavior better suits your playing style.

Multi-Effects Units

Modern multi-effects processors often benefit from the “four-cable method,” which allows you to split the unit’s effects between the front of your amp and its effects loop:

1. Guitar → Multi-effects input
2. Multi-effects preamp out → Amp input
3. Amp effects send → Multi-effects return input
4. Multi-effects output → Amp effects return

This configuration lets you place your multi-effects’ gain and filter effects before your amp’s preamp while keeping modulation, delay, and reverb in the effects loop.

Most high-end units like the Line 6 Helix, Fractal Audio Axe-Fx, or Neural DSP Quad Cortex allow you to configure internal signal routing to optimize for this setup.

Finding Your Ideal Setup

The effects loop vs front of amp debate ultimately comes down to your specific gear and the sounds you’re trying to achieve. Here are some final thoughts to guide your decisions:

• Trust your ears above all else. If it sounds good to you, it is good—regardless of “conventional wisdom.”
• Start with the basics: gain and filter effects in front, time-based effects in the loop.
• Experiment methodically, changing one element at a time so you can clearly hear the differences.
• Be willing to break the rules for creative purposes. Some of the most interesting guitar tones come from “incorrect” setups.

Try both approaches before settling on your main setup. What works for one guitarist, amp, or musical style might not work for another. The journey of discovering your personal tone is part of what makes playing guitar so rewarding.

Guitar tone is subjective, and the “best” setup is the one that inspires you to play your best. Whether you’re an “everything up front” kind of player,  or a dedicated effects loop enthusiast, what matters most is how your rig helps you express yourself musically.
