What is a Transparent Overdrive Pedal? A Simple Guide

Few pedal terms get thrown around as often, or as vaguely, as the term “transparent overdrive.” We see it in forum debates, pedal marketing blurbs, and so many gear demos. And, almost always, without much clarity.

So, what does “transparent overdrive” actually mean?

At its core, it’s an overdrive pedal that adds grit and sustain without changing the essential tone of your guitar and amp. No excessive mid-boosts, scooped EQs, or heavy coloration — just your sound, pushed further.

So, instead of reshaping your EQ with heavy mid boosts or scooped lows, it just adds drive while preserving the tone you’ve already dialed in.

This “transparency” makes transparent overdrives so appealing for players who love how their amp sounds on its own but want a little extra push without losing that core tone.

In this article, we’ll look at what makes transparent overdrives different from other gain pedals, how these circuits work, and explore when (and why) you might want one on your pedalboard.

What is a Transparent Overdrive?

Transparent overdrives add gain to your signal without changing your guitar and amp’s natural sound and tonal characteristics.

So, what makes these pedals different from other overdrives is mostly their EQ profile.

While many overdrives, such as the Tube Screamer TS9 or TS808, deliberately boost midrange frequencies (around 723Hz) and cut bass to help guitars cut through a full band mix, transparent overdrives have a flatter frequency response.

So when you turn on a “truly” transparent overdrive, you shouldn’t hear a dramatic shift in your tone’s EQ balance. It should just be the sound of your guitar and amp with some added grit and sustain.

However, the idea of perfect transparency is more of a dream than a reality.

Even the most transparent overdrive pedals will introduce some coloration to your guitar tone. But with transparent overdrive, what matters most is that any coloration to your tone is minimal compared to other deliberately voiced overdrives.

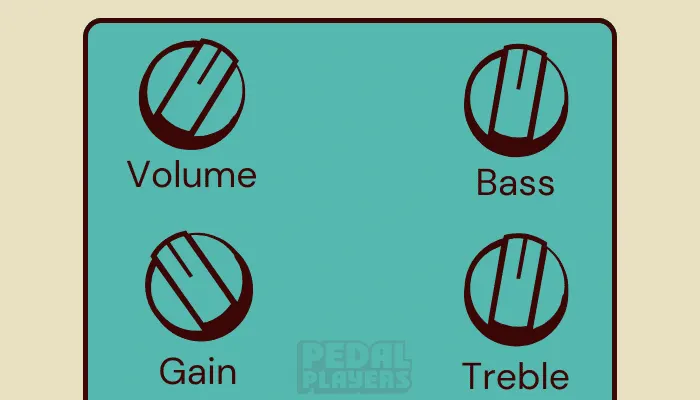

Common Controls on Transparent Overdrives

The controls on transparent overdrive pedals typically work a little differently from other overdrives. Although, you might not always notice a massive difference.

Some transparent overdrives have bass and treble cut controls rather than a single tone knob. When these controls are set “flat” (often at their maximum or minimum positions depending on the pedal’s design), they should have the smallest impact on your guitar’s tone.

For example, the Timmy overdrive pedal, by Paul Cochrane, shows this method with its backward-wired tone knobs. These tone knobs remove frequencies when you modify them rather than add.

Overall, though, transparent overdrive pedals are about improving or enhancing your tone rather than totally changing it. They aim to preserve what you love about your guitar and amp while giving you a bit of extra bite. This is especially useful if you already have a killer clean tone – that’s the dream, right?

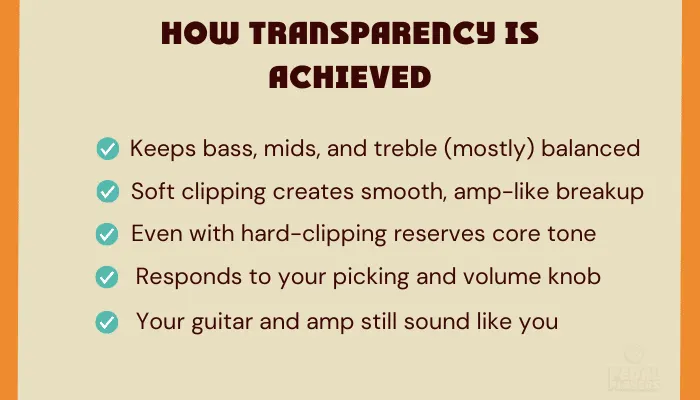

How Transparency is Achieved

There are several technical design factors that go toward making an overdrive pedal more transparent, starting with the circuit’s overall frequency response.

Unlike standard (colored) overdrives that highlight certain frequency ranges (think the tube screamer again), transparent overdrives hold a relatively flat EQ curve across the frequency spectrum.

The clipping section of a transparent overdrive pedal is especially important in defining this transparency. Many transparent overdrives use soft clipping arrangements that gradually compress signal peaks rather than abruptly cutting them off. This gives you a more natural, amp-like breakup.

However, as we see in the Timmy and Klon-style circuits, even some hard-clipping overdrive pedals can give you that transparent tone. They do this through clever circuit design that maintains the core elements of your clean signal.

Another benefit of transparent overdrives is their dynamic response. They usually react sensitively to your playing touch and guitar volume adjustments. They’ll clean up nicely when you play softly or roll back your volume—much like a good old tube amp.

Things like buffer sections and how the pedal handles input/output can also play a role. These help keep your signal strong and clear, with minimal tone loss as it travels through the circuit.

All this careful attention to maintaining the signal helps maintain the nuances and character of your original guitar tone, even as the pedal adds more and more overdrive.

Best Transparent Overdrive Pedals

There are several famous transparent overdrive pedals, each having earned its reputation as a leader in transparent overdrive. Each of these pedals has its own subtle flavor but still maintains the core principle of keeping the tone as close to the original as possible.

The Timmy

The Paul Cochrane Timmy is known and loved as one of the most transparent overdrives available [1].

Its ingeniously designed circuit features those uniquely wired tone controls I was talking about earlier. Compared to most pedals, they work in reverse—they remove frequencies rather than add them. Set them flat, and the Timmy delivers your guitar’s signal with remarkable faithfulness while adding just the right amount of gain.

JHS Morning Glory

JHS Morning Glory has become another standard in the transparent overdrive category. This pedal is based on the Marshall Bluesbreaker circuit, it has a distinctly British-flavored overdrive sound that certainly maintains your guitar’s character. The Morning Glory will preserve your amp’s natural voice while adding a touch of harmonic complexity.

Klon Centaur (and Clones)

While it’s not really regarded as “truly transparent,” the Klon Centaur and its many clones deserve a mention in the transparent overdrive discussion. Despite having some mid-pushing character, these pedals keep a lot of your original tone. This is all done through a unique circuit design that blends clean and overdriven signals. At lower gain settings, they work as extremely transparent clean boosts.

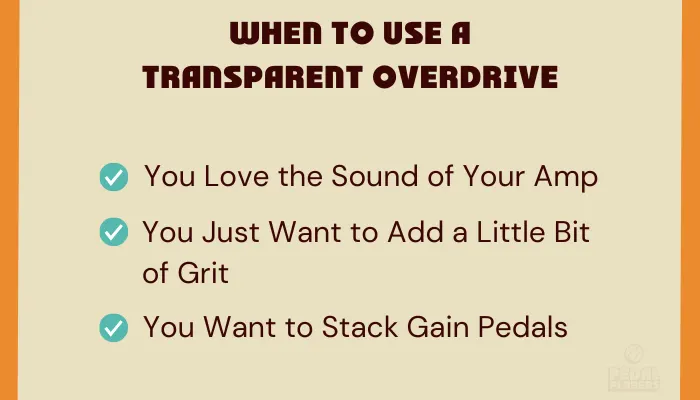

When to Use One on Your Board

Transparent overdrives work best when preserving your core tone is important to the overall sound. Here are some reasons you might want to put a transparent overdrive pedal on your pedalboard.

You Love the Sound of Your Amp

The most obvious use for a transparent overdrive is when you’ve already dialed in a clean tone with your guitar and amp that you love. If you adore your amp’s natural voice but need a little more gain, grit, and sustain without altering its basic character, then a transparent overdrive is the perfect solution.

This strategy is common with players using high-quality tube amps when they want to preserve their investment in great and expensive clean tones.

You Just Want to Add a Little Bit of Grit

Transparent overdrives are also awesome in situations where subtle tone shaping is needed. They can add gain without compromising that carefully prepared tone. This can be useful in recording sessions where your engineers have already carefully positioned microphones to capture your amp’s unique characteristics.

You Want to Stack Gain Pedals

Transparent overdrives also make great “foundational” overdrives in complex signal chains and large pedalboards. If you start with a transparent overdrive, you can easily stack more pedals for additional tone or gain.

Personally, I like to think of transparent overdrive as another tool in the toolbox, rather than a game-changing option. If you’re looking for a dramatic mid-boost to cut through a dense mix, you’re probably better off with a Tube Screamer-style pedal.

But if you want to highlight your guitar’s voice while adding a bit of sustain and a beautiful, harmonically rich breakup, I recommend getting a transparent overdrive.

Your Tone, Just Pushed Further

Transparent overdrive pedals are a great tool in the guitarist’s toolkit. Reach for them when you want more of what you already have, rather than something completely different.

Unlike their more colorful counterparts, these pedals honor the tonal choices you’ve already created with your guitar and amp choices.

But, to me, understanding what makes a transparent overdrive different is what can help you make the right decisions about what overdrive pedal to use and when.

It doesn’t matter whether you’re just a bedroom player trying to get the best sound you can or a touring pro, a transparent overdrive is one of the most versatile gain pedals you can own.

My advice:

Start with the tone you love, and let a transparent overdrive pedal take it just a little bit further.
