How to Use Guitar Pedals for Vocals: A Beginner’s Guide

We’ve all watched guitarists step on a pedal and instantly transform their sound from clean to chaotic.

But what about vocalists?

If you’ve ever wondered, “Could my voice get that same treatment?”—the answer is absolutely yes.

Using guitar pedals for vocals opens up an entirely new world of musical possibilities. From subtle echoes to otherworldly transformations that could make Thom Yorke jealous.

The catch?

While guitarists just plug in and play, vocalists face a few extra hurdles. You can’t simply connect your microphone to a pedal with an adapter cable and expect great results.

But don’t worry! With a few affordable tools and a bit of know-how, you can safely route your voice through the same pedals that guitarists have been using for decades.

Let’s break down what makes it different and what you’ll need to get started.

TL;DR

Yes! You can use guitar pedals for vocals, but you’ll need a few extra pieces of gear.

Microphones operate at a lower signal level than guitars, so you’ll need a preamp or impedance-matching device to make the connection work properly.

Once set up, you can run your voice through delays, reverbs, modulation, and more to create unique vocal effects for live shows or recording.

How It Works (and Why It’s Not Plug-and-Play)

Guitar pedals are designed to handle instrument-level signals, like what comes out of a guitar. Microphones, on the other hand, output mic-level signals. These are much weaker and have different impedance requirements [1].

This mismatch is why simply using an XLR-to-1/4″ adapter usually results in low volume, poor sound, or unwanted noise. But that doesn’t mean it’s complicated.

With the right gear, a mic preamp or vocal interface that boosts and matches your mic signal, you can send your vocal signal cleanly into guitar pedals and get great results.

So, why bother with this extra step?

Well, guitar pedals can offer vocal effects that are weird, warm, wild, or just plain fun. Think glitch delays, analog distortions, lush reverbs, or radio-style EQ sweeps. This is all stuff that even expensive vocal processors can’t always do as creatively.

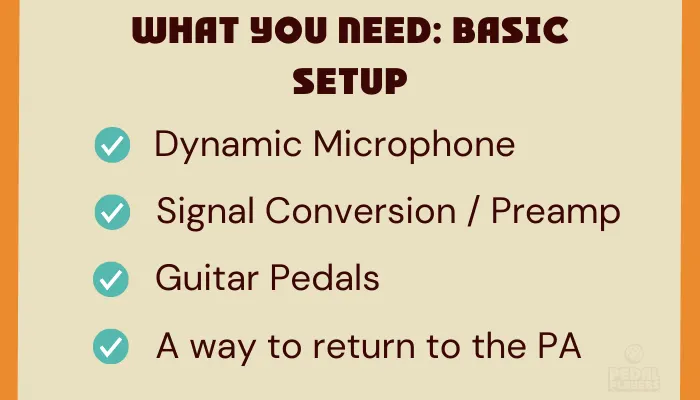

What You Need: Basic Setup

If you want to successfully use guitar pedals with your vocals, you’ll need a setup that addresses both the signal level and impedance differences.

Here’s what you’ll need for a reliable vocal pedalboard setup:

1. Dynamic Microphone

A great quality mic such as the Shure SM58 or Sennheiser e835. They don’t require phantom power and can handle high volumes without feedback or distortion.

2. Signal Conversion / Preamp

This is the crucial step that makes everything work. You need to boost your mic signal and match impedance before it hits your pedals. Options include:

• Impedance matching transformer (for example, Audix T50K)
• Mic-to-pedal interface units like the Radial Voco-Loco or Cusack Pedal Cracker
• Small mixer with FX send/insert
• Mic preamp with a high-impedance (Hi-Z) output

3. Guitar Pedals

Not all pedals are vocal-friendly, but delay, reverb, pitch-based effects, and EQs usually work well. Some distortion or modulation effects pedals can add creative texture, but test them carefully.

4. Returning to the PA

Once your signal has passed through your pedals, you’ll need to route it back into your live or recording setup:

• Use a DI box to convert the signal back to mic level for the mixer or PA
• Or, return through the FX return or line input on your mixer

Example Signal Chain

Here’s a step-by-step walkthrough of a basic vocal effects setup using guitar pedals:

1. Microphone
   Start with a dynamic mic (like a Shure SM58) connect it using a standard XLR cable.
2. Signal Converter / Preamp
   Run the XLR into your impedance matching device. This could be:

   • An inline transformer (such as Audix T50K)
   • A dedicated interface (such as Radial Voco-Loco, Cusack Pedal Cracker)
   • A mic preamp with a high-Z output

3. Guitar Pedals
   From the 1/4” output of your converter, connect to your guitar pedals in order. A typical chain might look like:

   • Compression → EQ/filtering → Modulation (chorus/flanger) → Delay → Reverb

4. Output to PA or Amp
   After your last pedal:

   • Connect to a DI box to return to mic level for the PA system
   • Or go straight into a mixer input or small amp for monitoring in smaller setups

Common Mistakes to Avoid

• Using only an XLR-to-1/4” adapter without impedance matching
• Plugging in a condenser mic without phantom power (stick to dynamic mics)
• Stacking too many delay and reverb pedals, which can cause a muddy vocal sound
• Not giving your sound engineer a heads-up about your setup before the show

Best Gear Options for Vocals

When building your vocal effects setup, you’ll need the right interface to make guitar pedals work with your microphone. Here are some reliable options at different price points:

Budget Options ($20-50)

Inline Impedance Transformers

Devices like the Audix T50K or Shure A85F convert mic-level XLR signals to the instrument-level signals that guitar pedals expect. They’re compact, affordable, and great for simple or portable setups—ideal for beginners.

Mid-Range Options ($100-250)

Small Mixer with FX Loop

A compact mixer with insert/send capabilities can boost your mic signal and route it through your guitar pedals before returning it to the mix. Great if you already have a mixer in your setup.

Professional Options ($200-400)

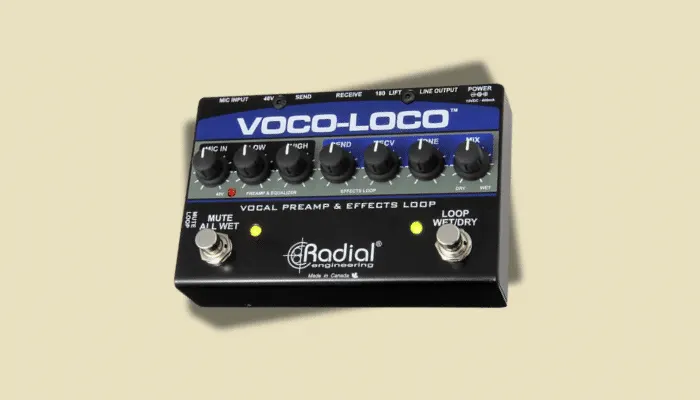

Radial Voco-Loco

A top-tier vocal-to-pedal interface that includes a quality preamp, effects loop, and dry/wet blend control. Trusted by touring musicians for a reason.

Cusack Pedal Cracker

Designed specifically to let vocalists use guitar pedals cleanly. Offers proper impedance matching and buffering in a rugged enclosure.

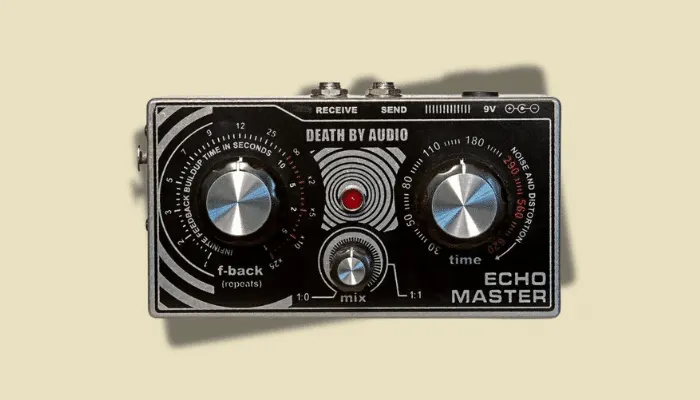

Death By Audio Echo Master

Part preamp, part delay pedal, part effects loop. This unique unit gives you instant lo-fi flair and lets you add more pedals through its loop.

Vocal FX Alternatives (No Guitar Pedals Required)

If you want vocal effects but aren’t set on using traditional guitar pedals, these all-in-one solutions may suit your needs better:

TC Helicon VoiceTone Series

A range of pedals designed specifically for vocals—reverb, delay, harmony, pitch correction, and more. No external gear needed.

Boss VE-20 Vocal Performer

A versatile vocal processor offering multiple effects in a single unit. Ideal for live singers who want quality sounds with minimal setup.

Common Problems and How to Avoid Them

Even with the right gear, you might encounter a few hiccups when setting up guitar pedals for your vocals. Here are the most common issues and how to solve them:

Feedback Howling

When your vocal signal starts creating that ear-piercing screech:

• Position stage monitors away from your microphone
• Use a dynamic mic with a tight cardioid pickup pattern
• Add a noise gate at the start of your chain
• Lower the overall gain in your setup
• Back off the mic when triggering heavy reverb or delay

Weak or Noisy Signal

If your vocals sound thin, quiet, or hissy:

• Make sure you’re using a proper impedance matcher, not just an adapter
• Confirm your preamp is supplying enough gain
• Keep cable runs short to reduce signal degradation
• Use high-quality shielded cables
• Place any boost or gain pedals early in the chain

Muddy or Unintelligible Vocals

When effects make your lyrics impossible to understand:

• Use a blend control to mix in dry vocals alongside your effects
• Be conservative with delay and reverb, especially live
• Stick to shorter delay times and fewer repeats
• Use EQ after your effects to cut muddy low-mids
• If possible, split your vocal into a clean channel and an effects channel at the mixer

Signal Drop-outs or Cutting Out

If your vocal suddenly disappears:

• Check all cable connections—loose cables are the number one culprit
• Make sure guitar pedals are properly powered (fresh batteries or solid power supply)
• Avoid daisy-chaining too many pedals on one power source
• Use a buffer pedal or a buffered output from your preamp to maintain strength

Vocal experimentation is meant to be fun. Start simple with one or two pedals and get a feel for how they respond to your voice. Build your setup gradually—and always test before the gig.

Pedals Aren’t Just for Guitarists Anymore

Adding guitar pedals for vocals to your setup isn’t just possible. It’s a creative adventure worth exploring. With a basic impedance matcher and a few well-chosen pedals, you can shape vocal textures that stand out and support your unique sound.

Don’t be afraid to experiment. Try different pedal combinations, tweak your settings, and see how your voice responds. The investment is relatively small compared to most music gear, but the creative payoff can be massive.

Whether you’re performing live or recording at home, using guitar pedals with your vocals opens up a world of expressive possibilities your audience won’t soon forget.

Now go make some noise.
